Analyze Process Root Causes for KPIs in QPR ProcessAnalyzer 2019.8

Oct 29, 2019 / by Sakari Lapinsuo    |    7 min read

The latest version of QPR ProcessAnalyzer introduces Root Cause Analysis for ChartView, the powerful chart builder. Root Cause Analysis has been one of the key feature-related differentiators of QPR ProcessAnalyzer for the past years. The functionality has now been extended to support ChartView, which is the latest addition to the presentation object library.

ChartView itself has been updated once again with many new features that I’ve listed at the end of this post. These features have to do with advanced configurations that give you more ways to present your process-related findings. If this sounds familiar, it’s likely because in my previous post I covered other advanced features of ChartView. So consider this article partly a sequel. But, let’s start with the extension of Root Cause Analysis.

Process Root Cause Analysis for KPIs

To get to the point, let’s continue using the chart that I created in my previous post. At one point it looked like this:

chartview-2

We looked at the average case cost by region. If you change the first measure to be “Case duration” instead of average case cost, you’ll see how long it takes, on average, to complete one case in different cities:

chartview-root-cause-1

Dallas is clearly an outlier: let’s see why that would be. Clicking the bar that represents Dallas’ average case duration brings up a small menu above the chart:

chartview-root-cause-icon2

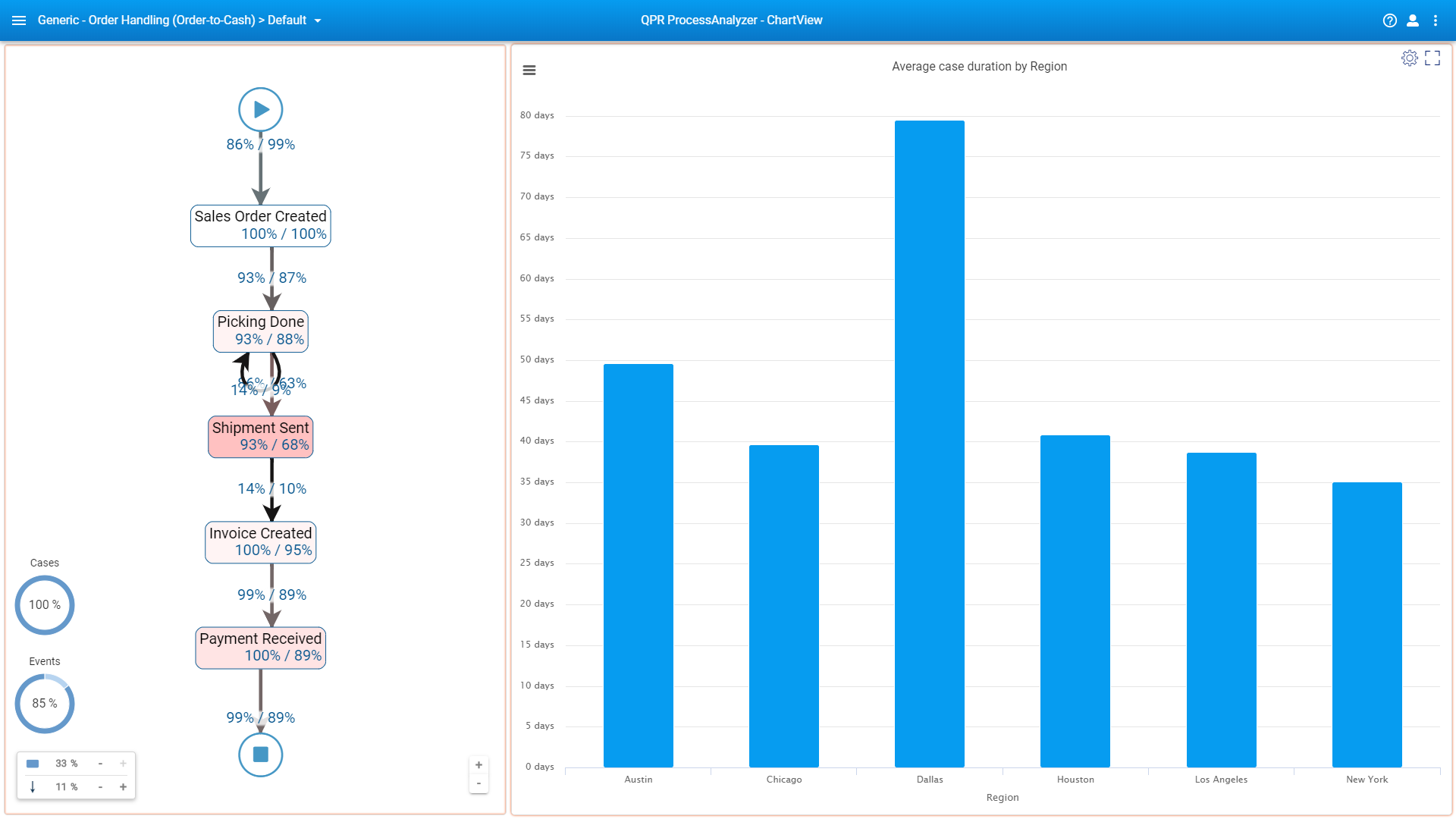

Click the “Show root causes for the selection” button. Notice how the flowchart on the left-hand side changes such that different shades of red are applied to those event types through which “Dallas cases (process instances)” diverge the most from other cases.

chartview-root-cause-3-ver1

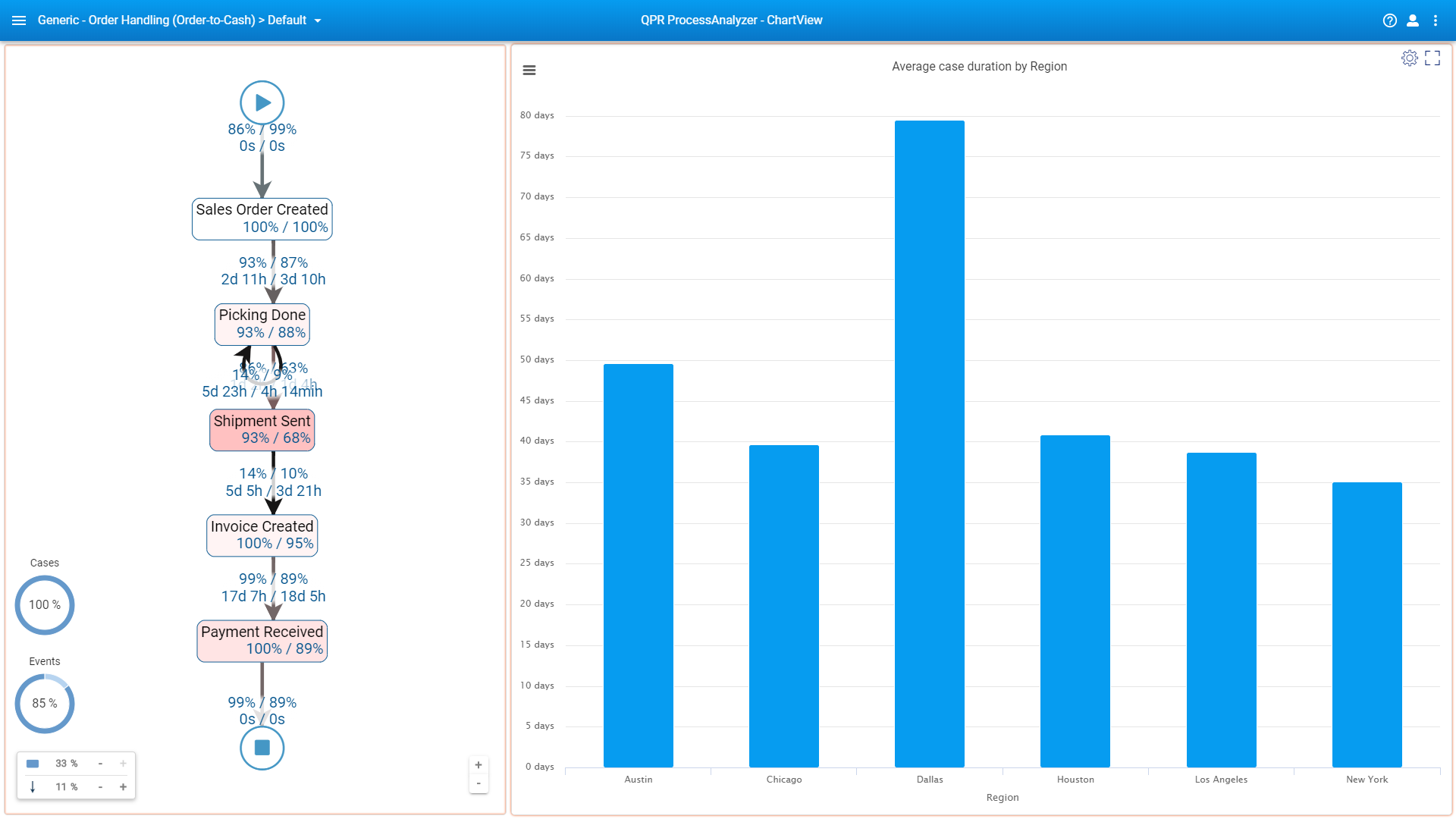

For example, the “Shipment Sent” event type shows 93% / 68% under the label. This means that 93% of all Dallas cases go through the Shipment Sent event type as opposed to 68% for non-Dallas cases. Let’s dive a little deeper and have the flowchart show durations for all flows (right-click the flowchart background, click Settings, go to the Settings tab at the top right of the sliding window that opened, and finally click “Show on Flows” under “Duration KPIs”):

chartview-root-cause-3-ver2

On top of the flow from Shipment Sent to Invoice Created it says “5d 5h / 3d 21h”. Looks like Dallas has got some issues with on-time invoicing: It takes nearly two days longer to create invoices in Dallas than the rest of the cities on average.

So what’s the big deal here? It’s that you’ll now have Root Cause Analysis functionality available for not just OOTB views but also for any custom views. This opens up many more options for presenting cause-effect relationships.

Speaking of presenting, charts that are built with ChartView can now be viewed in full-screen presentation mode.

Improvements in Dashboarding

Calculated measures for ChartView

Continuing with the same model, suppose your manager asked you to calculate the cost per duration for each case. How would you go about it?

The measures and dimensions defined in ChartView’s KPI Designer now include an advanced settings icon that is visible when you hover over the area dedicated to a single measure or dimension.

chartview-root-cause-4

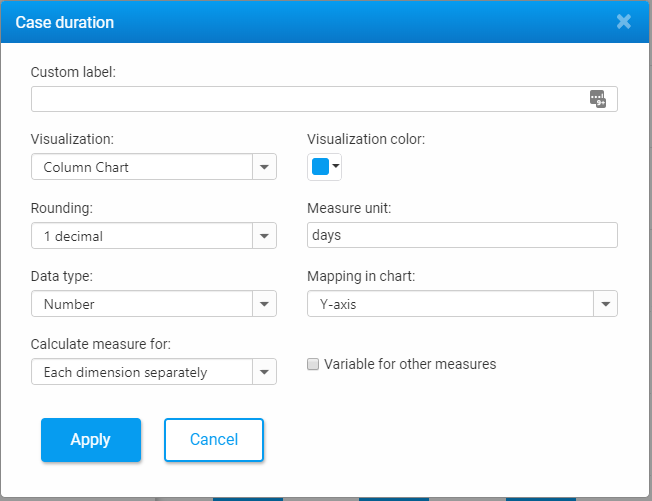

Clicking the indicated icon will open up a pop-up window that is almost similar for both measures and dimensions (the last drop-down and the checkbox are extras in the measures dialog):

chartview-root-cause-advanced-settings

As you can see, most of the options are straightforward: customize your chart title (or more accurately, part of the autogenerated title), choose a chart type for each measure, define rounding, color, data type, and unit for the measure. It’s the last checkbox that might need more explaining, but that’s exactly what we’ll need to deliver on your manager’s request.

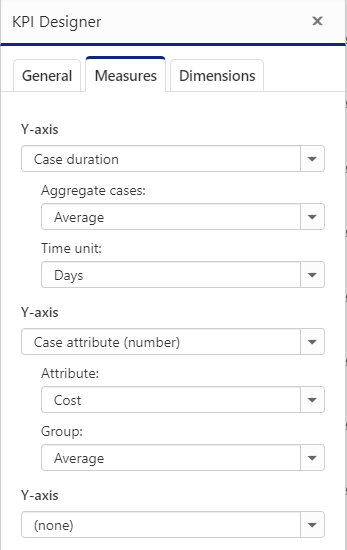

If you check the box and give the measure a custom label, this label will act as the name of a variable that represents the underlying measure. So, continuing from the above example, try adding a new measure for case cost such that the KPI Designer’s Measures tab will look like this:

chartview-root-cause-kpi-designer-2-measures

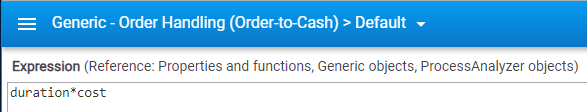

Then, in each measure’s advanced settings, check “Variable for other measures”, and select “(Not used)” under “Mapping in chart”. Remember to also give custom labels for both. The custom labels will act as variables that you can refer to locally from within the ChartView component. Here I’ll just use “Duration” and “Cost” as the variable names. Doing this will enable you to define new measures based on the defined variables using custom expressions (see my previous blog to understand how to work with custom expressions), like this:

chartview-root-cause-duration-x-case-cost

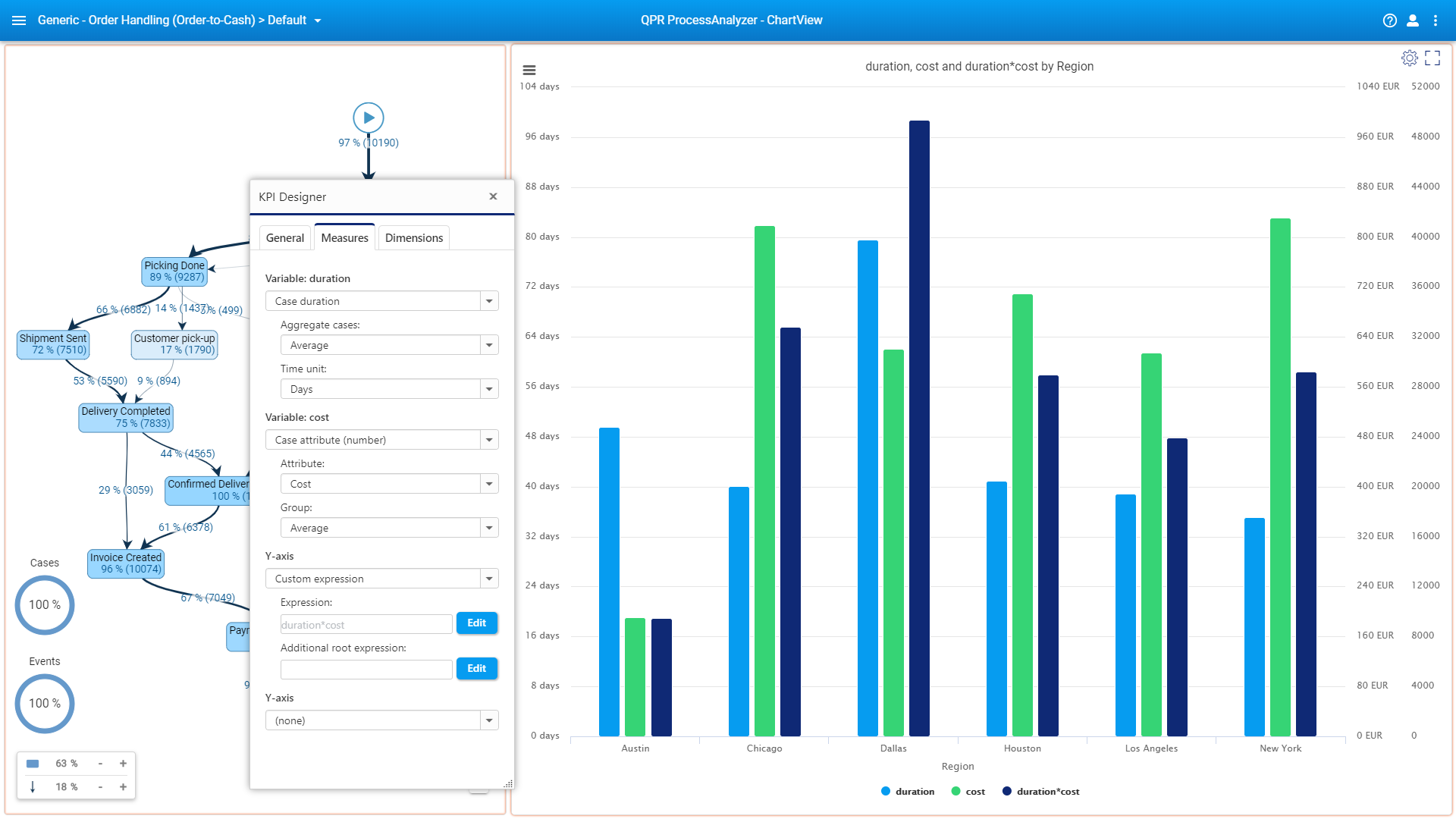

And this is what you’ll get:

chartview-root-cause-duration-times-cost

Whether "duration * cost" makes sense is debatable, but you see that new measures can be built with previously defined measures and there's no limit to the number of such constructs.

Other dashboarding improvements

Besides the above-explained calculated measures, dashboarding improvements include:

  • More options for sorting measures/dimensions in descending/ascending order
  • Ability to have ChartView presentations be unaffected by model-wide filters
  • Flexible mappings for series: Any measure/dimension can be mapped
  • Unlimited definitions for measures/dimensions
  • CSV export for tables
